A great Trend Kit with Hinge Jig, Router, Cutter and a Corner Chisel
This Trend Kit consists of the Trend H/JIG/C Hinge jig with adjustable apertures, T4EK Router with spindle lock, TRE-C019Ax1/4TC featuring its PTFE non-stick coated body and the Trend C/CHISEL, ideal for squaring hinge recesses in door frames and door edges.
H/JIG/C Hinge Jig Features:
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly
- Fully adjustable apertures for fire door requirements and renovation work
- Quick & simple to set up as the hinge is used as the pattern
- Use with a light-duty plunge router with 1/4 inch collet
- Long reach router cutter required, 12mm diameter with 70mm overall length
- Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
- Unibase may be needed
- T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

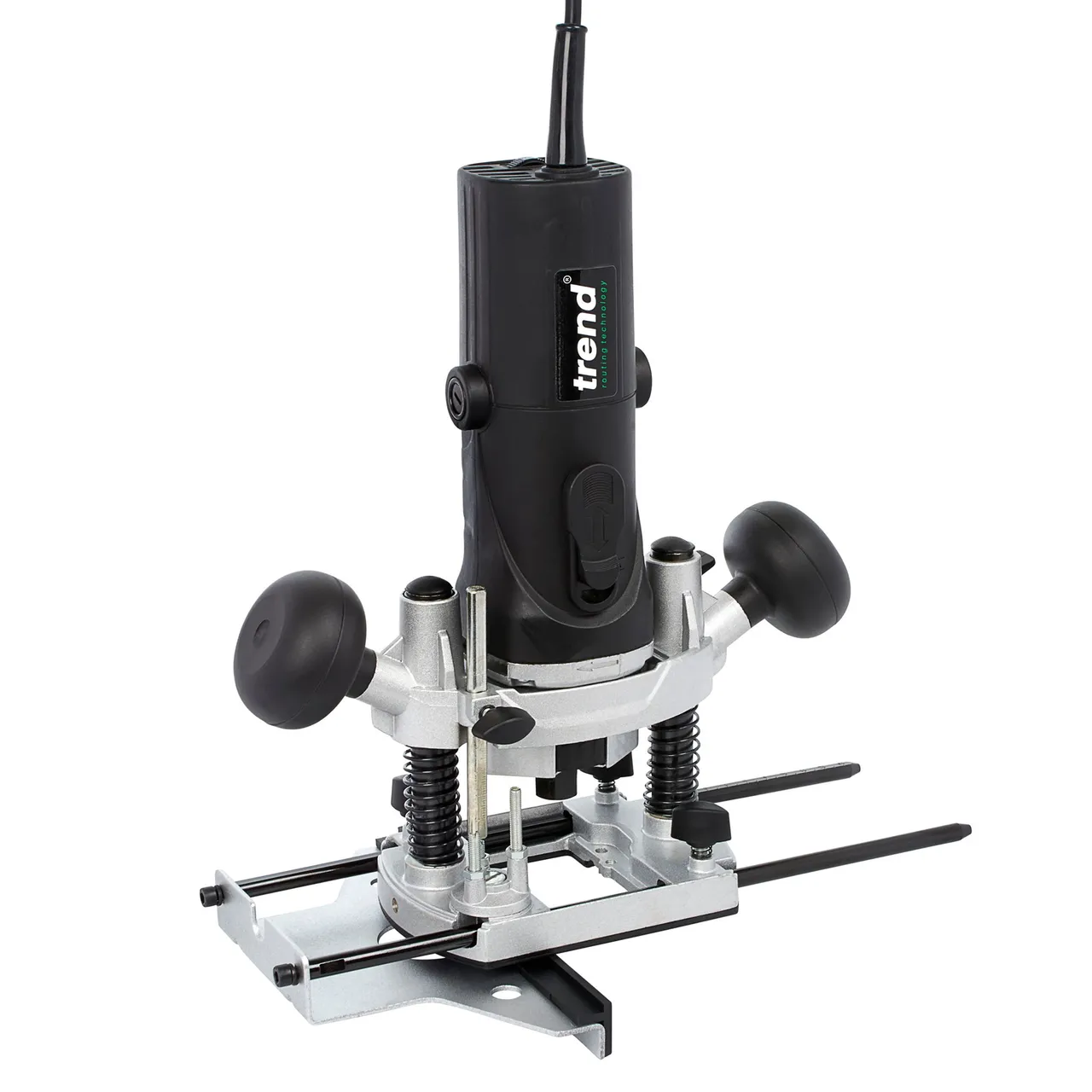

TRE-T4EK 240V Router Features:
- Variable speed control
- Spindle lock
- Hex collet nut allows easy cutter changes
- 43 mm diameter collar removable base for carving, die grinding and pillar drill fitment
- Tapped fixing holes for Trend standard guide bushes
- Separate dust spout fixing holes
- Adjustable twin rod side fence for guiding along a straight edge
TRE-C019Ax1/4TC Cutter Features:
- Use on softwoods, hardwoods, MDF, plywood and chipboard.
- Cutter has a bottom cut feature.
- Microgranular TC tips ensure perfect sharpness
- Highly ground tip face maintains its edge
- PTFE non-stick coated body
- Extra-long shank
TRE-C/CHISEL Corner Chisel Features:
- Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
- Ideal for squaring hinge recesses in door frames and door edges
- Can be used the Trend Hinge Jig
Comes with:
- H/JIG/C Hinge jig
- T4EK Router
- C019Ax1/4TC Cutter
- C/CHISEL Corner chisel
Specification:
H/JIG/C Hinge Jig
- Hinge sizes possible:
- - Length min. 2 5/8" (67 mm)
- - Length max. 5" (127 mm)
- - Width min. 1/2" (12.7 mm)
- - Width max. 1 3/8" (35 mm)
- Door sizes possible:
- - Height min. 6' 5" (1956 mm)
- - Height max. 2100 mm* (6' 10"*)
- - Thickness min. 5/8" (16 mm)
- - Thickness max. 2" (51 mm)
- Weight 2.9 kg
- Jig overall length 1956 mm
TRE-T4EK 240V Router
- Rating: Entry Trade
- Voltage: 240 volt
- Plunge stroke: 0-35 mm
- Power input: 850 watts
- Power ampage: 3.7 amp
- Standard collet dia: 1/4", 6 mm & 8 mm
- Dust spout size ID: 34 mm
- Guide bush dia: 16 mm
- No-load speeds: 11500 - 32000 rpm
TRE-C019Ax1/4TC Cutter
- D: 15/32 inch
- D: 12 mm
- C: 19 mm
- C: 3/4 inch
- OL: 71mm
- Shank Diameter:1/4 inch
TRE-C/CHISEL Corner Chisel
- Length: 70mm
- Width: 29mm
- Weight: 0.119kg
SKU: JDEAL-00020
Trend T4EK Router, Hinge Jig C, Cutter and Corner Chisel Set (240V)
