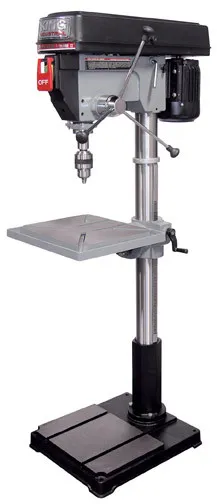

Description:

• Powerful 1 HP motor
• Line interruption electro-mechanical switch needs a restart after a power failure
• Spindle is supported by high quality ball bearings
• Cast-iron pulleys reduce vibrations
• 45° tilting table for angular drilling
• Non-slip rubber feed handles
• 12 speeds
• Light socket incorporated into drill press head (standard light bulb not included)

Specifications:

• CAPACITY: 1-1/4"
• CHUCK SIZE: 3/4"
• SWING: 22"
• STROKE: 4-3/4"
• MAX. DISTANCE FROM CHUCK TO TABLE: 21-3/4"
• MAX. DISTANCE FROM CHUCK TO BASE: 41-7/8"
• TABLE SIZE: 18-3/4" x 16-1/4"
• SIZE OF T-SLOT ON TABLE: 5/8"
• SPINDLE TAPER: MT #4
• QUILL DIAMETER: 75 mm
